Surveillance Application System

Product outline

The surveillance camera system with onshore mounted model can be installed on steel towers, steel poles, buildings, etc. You can select one of the following cameras, such as a high-sensitivity CMOS camera, a high-sensitivity CCD camera, a laser camera, or an infrared camera and then, the selected camera will be embedded into the all-weather camera housing. Or you can combine several of these cameras to be mounted and remotely rotated them in all directions to monitor any desired direction.
If you are interested, please feel free to contact us for more details.

Example of the use of our systems

We'd like to show you an operational example of the surveillance camera system with the onshore mounted model.

System structure

This is a main structure of the surveillance camera system with the onshore mounted model.
[Imaging unit]
Electric rotary bases embedded with various cameras.
[Surveillance control unit]
These are devices that remotely operate the rotary bases and cameras,monitor images, and then record.
[Video image and control transmissions]
Video image and control transmissions between camera installation sites and monitoring rooms.

A variety of options to fit our systems

We'd like to show you types of imaging units, surveillance control units, and video images and control transmissions.

Types of imaging units

1. Equipped with a super-telephoto lens and an ultra-high sensitivity CMOS camera
2. Equipped with an infrared camera
3. Equipped with a laser camera




4. Equipped with an infrared camera on the top of a searchlight with a rotary base, which can be remotely controlled.

Types of monitoring control units

1. Mechanical operation panels (joysticks, mechanical buttons, etc.)
2. Operation by means of computers
3. Operation by a combination of mechanical operation panels and computers or touch panels.

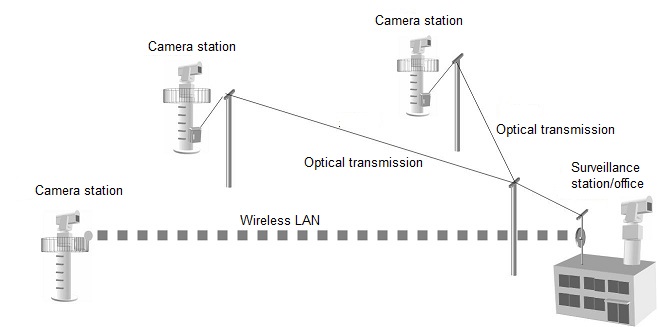

Types of video image and control transmissions

1. Transmission over relatively short distances using cables
2. Transmission over long distances using fiber optic cables
3. Spatial transmission over long distances using wireless LAN
4. Transmission over public networks such as the internet and SIM lines through mobile phones

Our surveillance camera system with onshore mounted model is not only such combinations, but we can also customize and propose new design according to customer's request.

Sample videos

The videos below will play when you click on one of the still images.
To view these videos, you need VLCmediaPlayer.

Shooting of a small ship at a point 2.5 km away from land.

Shooting of large cranes at a point of 4 km away from the opposite bank.

Shooting of a small ship at a point 3 km away from at night.

Shooting of a state of waves on the sea surface from land at night.
