14x14 Full-HD Matrix Switcher
Product outline
This product has been developed based on the imaging system technology
of the vessels to be supplied by our company, so that our users can use
it as a device that efficiently distributes and displays various information
concentrated in the wheelhouse on multiple monitors.
-This product, hereinafter referred to as "it", occupies very little space at 1U in terms of EIA standards.
-For video input, it uses an HD-SDI signal with a range of up to 100m, which enables long-distance transmission in vessels.

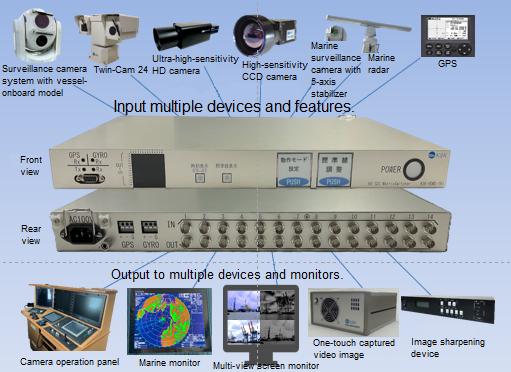

-It can distribute and output multiple images, including high-definition color images, infrared thermal images, radar images, AIS images, etc. to any desired location.
-It can display direction, current time, latitude, longitude, bow information, etc. when connected to both gyro and GPS signals.
-It is available for 1/30fps video input.
Please
contact us for detailed specifications.
Features
-The matrix switcher circuit, which supports images from a 16:9 landscape full high-definition color camera, can not only display the images of the monitors, but also display various text information superimposed on the monitors using the superimposition circuit.-This product, hereinafter referred to as "it", occupies very little space at 1U in terms of EIA standards.
-For video input, it uses an HD-SDI signal with a range of up to 100m, which enables long-distance transmission in vessels.
-It can distribute and output multiple images, including high-definition color images, infrared thermal images, radar images, AIS images, etc. to any desired location.
-It can display direction, current time, latitude, longitude, bow information, etc. when connected to both gyro and GPS signals.
-It is available for 1/30fps video input.
| Brief
specifications -Video input resolution: up to 1920 x 1080i and 59.94Hz -Number of input/output signals: IN：14 inputs, OUT: 14 outputs -Superimposition: 2 inputs -Video signal: HD-SDI (BNC connector) -Power supply: AC 100V -Weight: 5kg -Dimensions: W444mm x H44mm x D300mm (conforms to EIA standards) |
 |
